When you install the Bolt-Lock Mounts onto a surface, the screw holes are hidden behind the tiles, so it's hard to mark the drill holes.

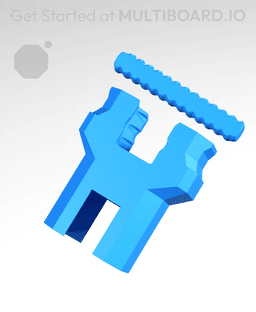

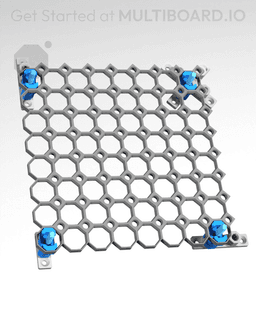

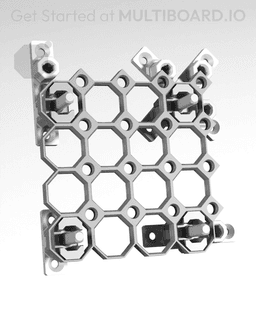

Use this Installation Tool to offset the mounts and the Tiles (as shown in the images) so you can mark the drill holes.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

This object is part of Multiboard, a FREE "all in one" organization system with 900+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.

Explore and build the coolest, most adaptable workshop at https://multiboard.io
